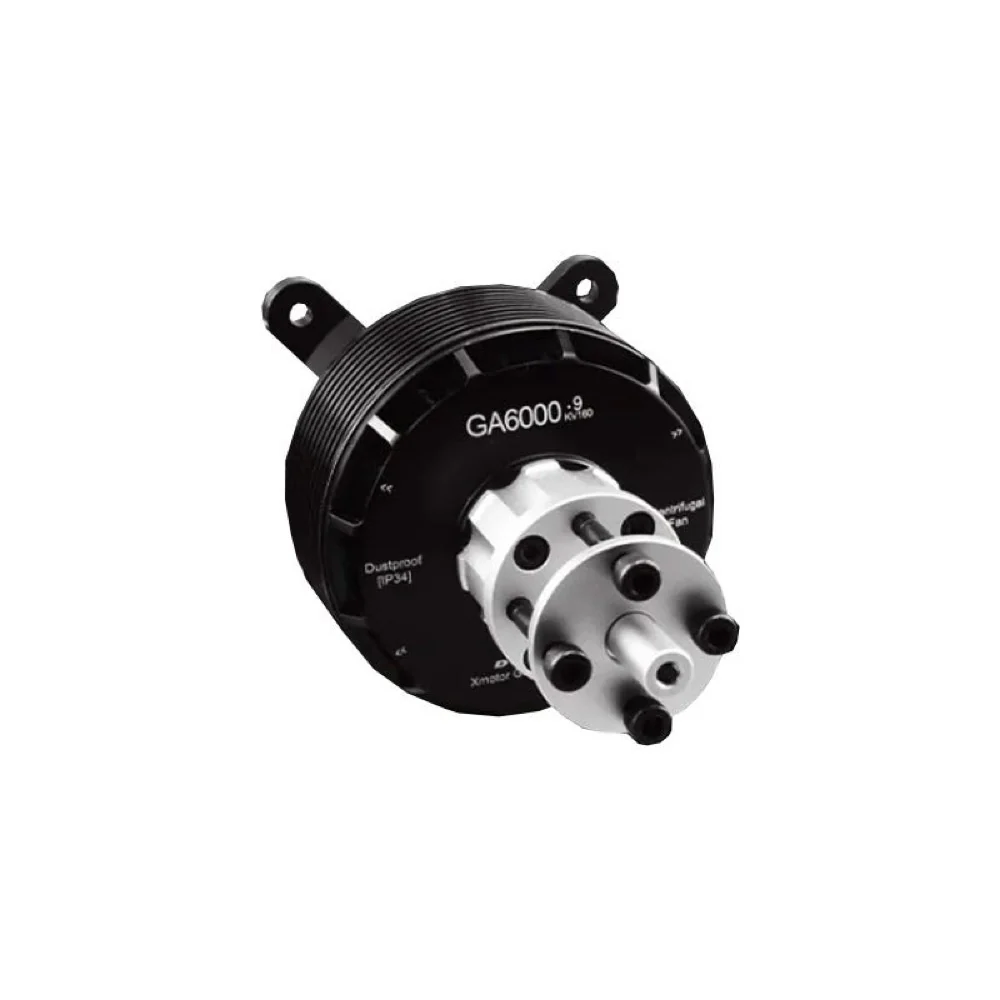

Dualsky DSXM51557 GA6000.9S 160kv 60cc Single Bolt Brushless Motor

This is the GA6000.9S 160kv 60cc Single Bolt Brushless Motor by Dualsky. It is suitable for 55-60cc class 3D or scale warbirds.

Features

• For giant scale models a wonderful alternative to 55-60cc petrol engines
• Single shaft edition
• Peak power at 15s is 8.4 horsepower
• For 3D or scale warbirds
• Compatible with 10-12 cell LiPo batteries

Specification

• KV: 160
• Weight (g): 1020g
• Diameter (mm): 90.2
• Length (mm): 101 (with mounts), 141/ 151 overall
• Shaft diameter (mm): 12 internal, 10 output, 100
• Slots & poles: 24, 28
• Io@10V (A): 1.8
• Resistance (Ri) (mOhm): 17.1
• Cells (LiPo): 30-51V - 10S, 10S
• Cruising Power (W) (8 mins): 3100 (4.2HP)
• Max. Burst current (15S) (A): 130
• Max. Power (15S) (W): 6200 (8.4HP)
• Recommended ESC: 130A-160A HV Series
• Propeller: 24x10, 24x12, 25x10, 26x10 (NO ELECTRIC PROPS ALLOWED)
• Application: 55-60cc class, 3D or scale warbirds
• Weight of Sports Airplane
• Up to 17kg
• Weight of 3D Airplane
• Up tp 10kg
