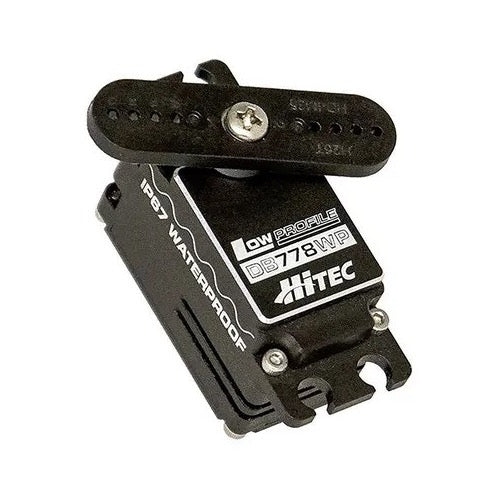

Hitec HRC36788 DB778WP BLDC Low Profile Waterproof Servo

Hitec is excited to introduce their latest DB-Series brushless servo, the high-performance, low profile DB778WP. Manufactured with “hitecnology” industrial servo innovation, the DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars.

Features

• Voltage Range is 3.7V - 8.4V
• Ultra-efficient brushless motor
• Hardened steel gears
• All aluminium case
• IP-67 waterproof rated
• High response, high resolution circuitry
• 32-Bit MCU Technology / 4096 Resolution
• Smart sense technology for servo analytics
• Full programmability with DPC11 or HFP-30 (sold separately)
• H25T Industry standard output spline

Specs

• Application: Surface Cars & Trucks
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Gear Type: Metal
• Input Voltage: 3.7v - 8.4v
• Speed (Second @60°): 0.08 @ 8.4V
• Max Servo Torque: 200-349 oz-in
• Overload Protection: Yes
• Product Height: 1.04" (26 mm)
• Product Length: 1.61" (41 mm)
• Product Weight: 2.4 oz (68 g)
• Product Width: 0.82" (21 mm)
• Programmable: Yes
• Resolution: 4096
• Rotation Range: 180 Degree
• Servo Operating Voltage: 4.8 - 8.4V (HV)
• Servo Size Category: Low Profile
• Servo Type: Digital
• Spline Count: 25 - Tooth
• Torque: 283.56 oz/in @ 8.4v
• Water-Resistant: Yes
