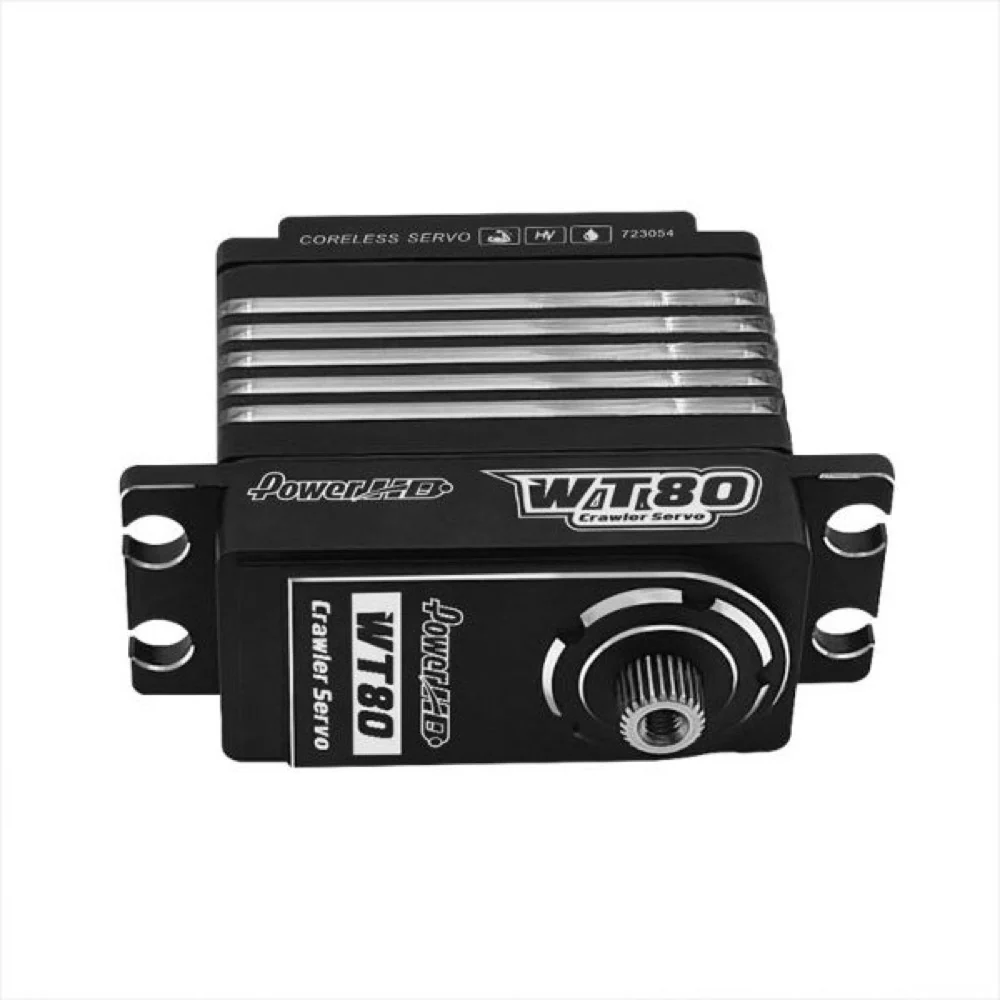

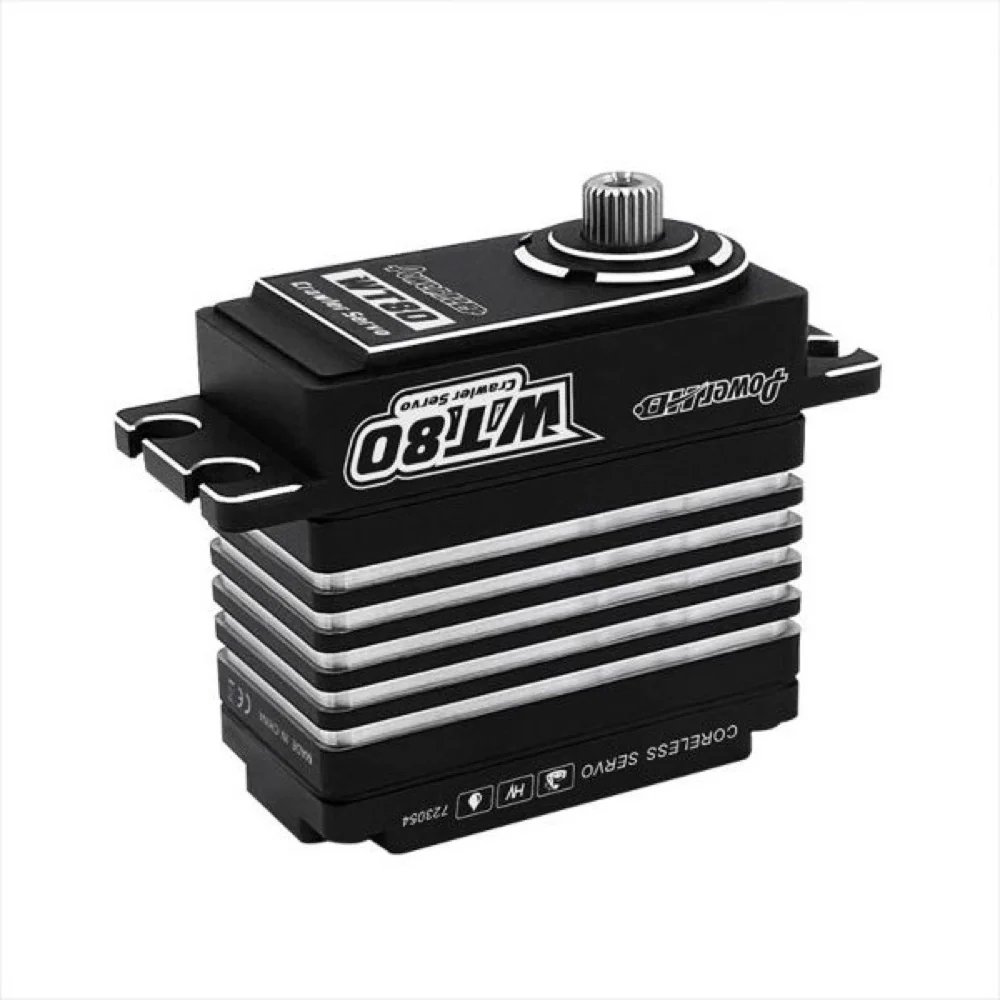

Power HD PHD-WT80 Crawler Servo

Power HD WT80 and WT85 Power HD are dedicated for Crawler use. They use aluminum heat sink case, and offer strong torque and speed on various crawler frames.

WT series servos are all made of steel gears, IP67 waterproof, durable, and can be used in various environments; they perform well on 1/10 and 1/8 simulation crawlers and competition crawlers.

Specification

• Torque(6.0V): 23.0 kg-cm ( 319.4 oz/in)
• Torque(7.4V): 28.0 kg-cm ( 388.8 oz/in)
• Torque(8.4V): 35.0 kg-cm ( 486.1 oz/in)
• Speed: 0.12 sec (6.0V) / 0.10 sec (7.4V) / Speed: 0.09 sec (8.4V)
• Operating Voltage 6.0 ~ 8.4 DC Volts
• Weight: 80 g (2.82 oz)
• Bearing Type Ball Bearing x 2
• Motor Type: Coreless Motor
• Gear Type: Steel
• Size 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
