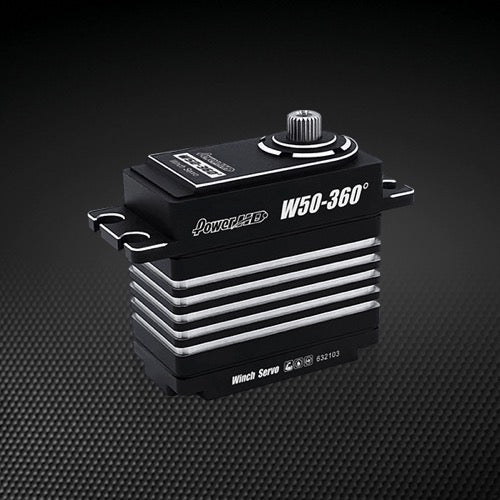

Power HD W50-360 HV Coreless Digital Winch Servo

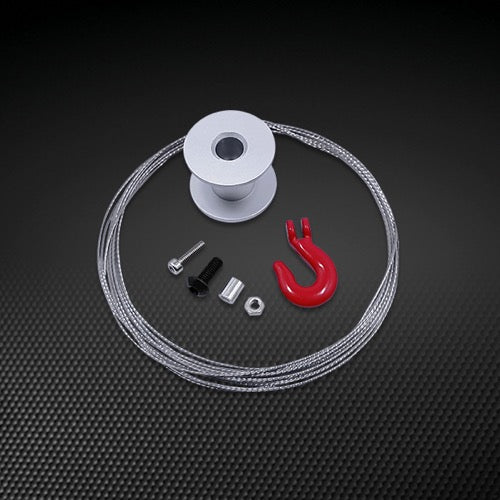

W50-360 degree winch servo, with maximum output torque of 50KG/cm, applicable to VP-VS4-10 chassis and other modified winch models.This full aluminum case winch servo equipped with steel towing rope, metal spool and hook, etc. It could be easily retractable and controlled through a multi-channel receiver
Specification
- Torque
- (6.0V): 35.0 kg-cm ( 486.1 oz/in)
- (7.4V): 45.0 kg-cm ( 625.0 oz/in)
- (8.4V): 50.0 kg-cm ( 694.4 oz/in)
- Speed: 1.3 sec/360° (6.0V)│1.0 sec/360° (7.4V)│0.9 sec/360° (8.4V)
- Operating Voltage: 6.0 ~ 8.4V DC Volts
- Weight: 80 g (2.82 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Coreless Motor

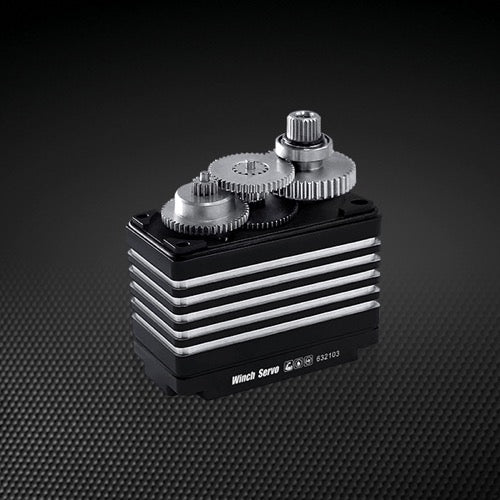

- Gear Type: Steel
- Operating Temperature: -20℃~60℃
- Working frequence: 1520μs / 333hz
- Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
$36.77
Original: $105.07
-65%Power HD W50-360 HV Coreless Digital Winch Servo—
$105.07
$36.77Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
W50-360 degree winch servo, with maximum output torque of 50KG/cm, applicable to VP-VS4-10 chassis and other modified winch models.This full aluminum case winch servo equipped with steel towing rope, metal spool and hook, etc. It could be easily retractable and controlled through a multi-channel receiver
Specification
- Torque
- (6.0V): 35.0 kg-cm ( 486.1 oz/in)
- (7.4V): 45.0 kg-cm ( 625.0 oz/in)
- (8.4V): 50.0 kg-cm ( 694.4 oz/in)
- Speed: 1.3 sec/360° (6.0V)│1.0 sec/360° (7.4V)│0.9 sec/360° (8.4V)
- Operating Voltage: 6.0 ~ 8.4V DC Volts
- Weight: 80 g (2.82 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Coreless Motor
- Gear Type: Steel
- Operating Temperature: -20℃~60℃
- Working frequence: 1520μs / 333hz
- Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
